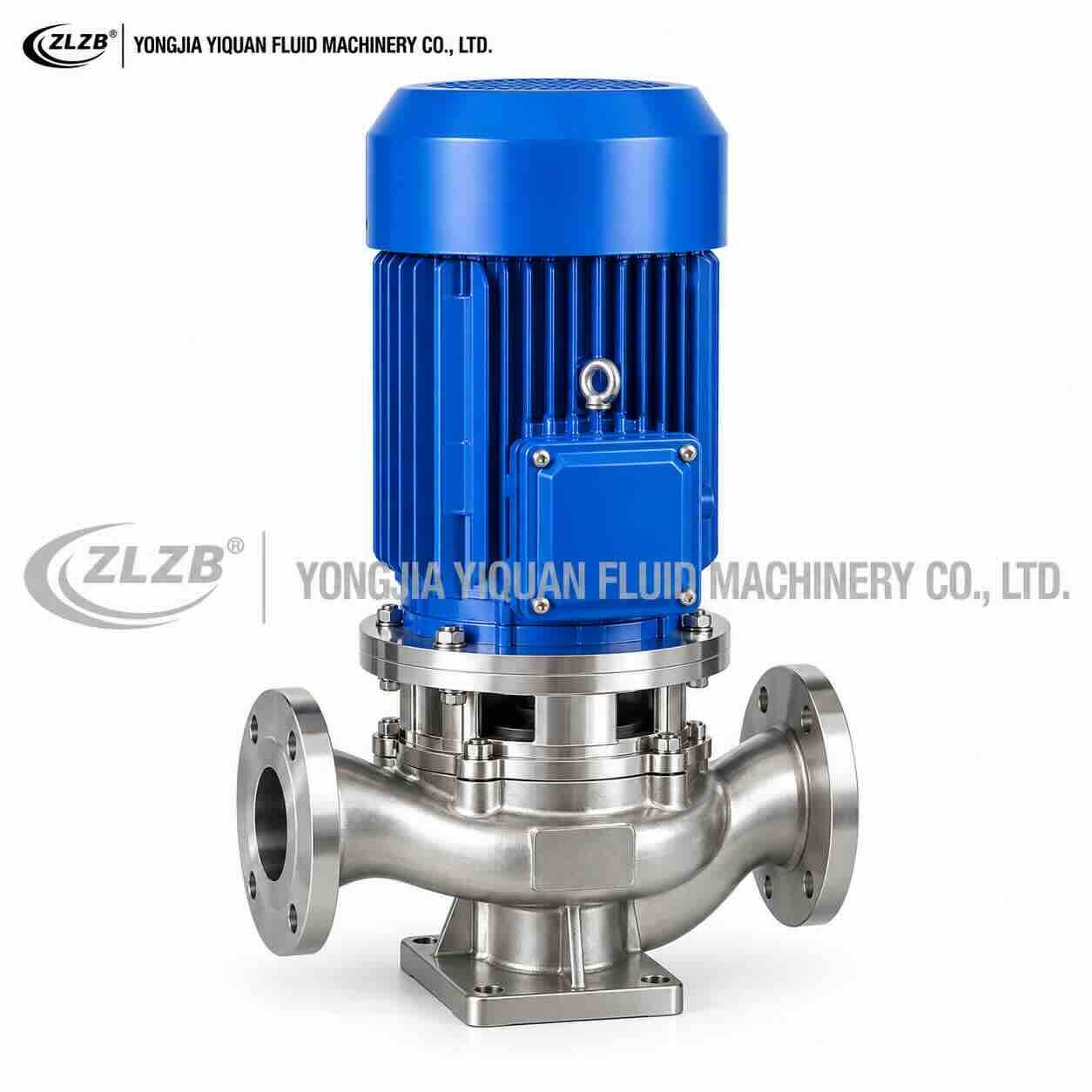

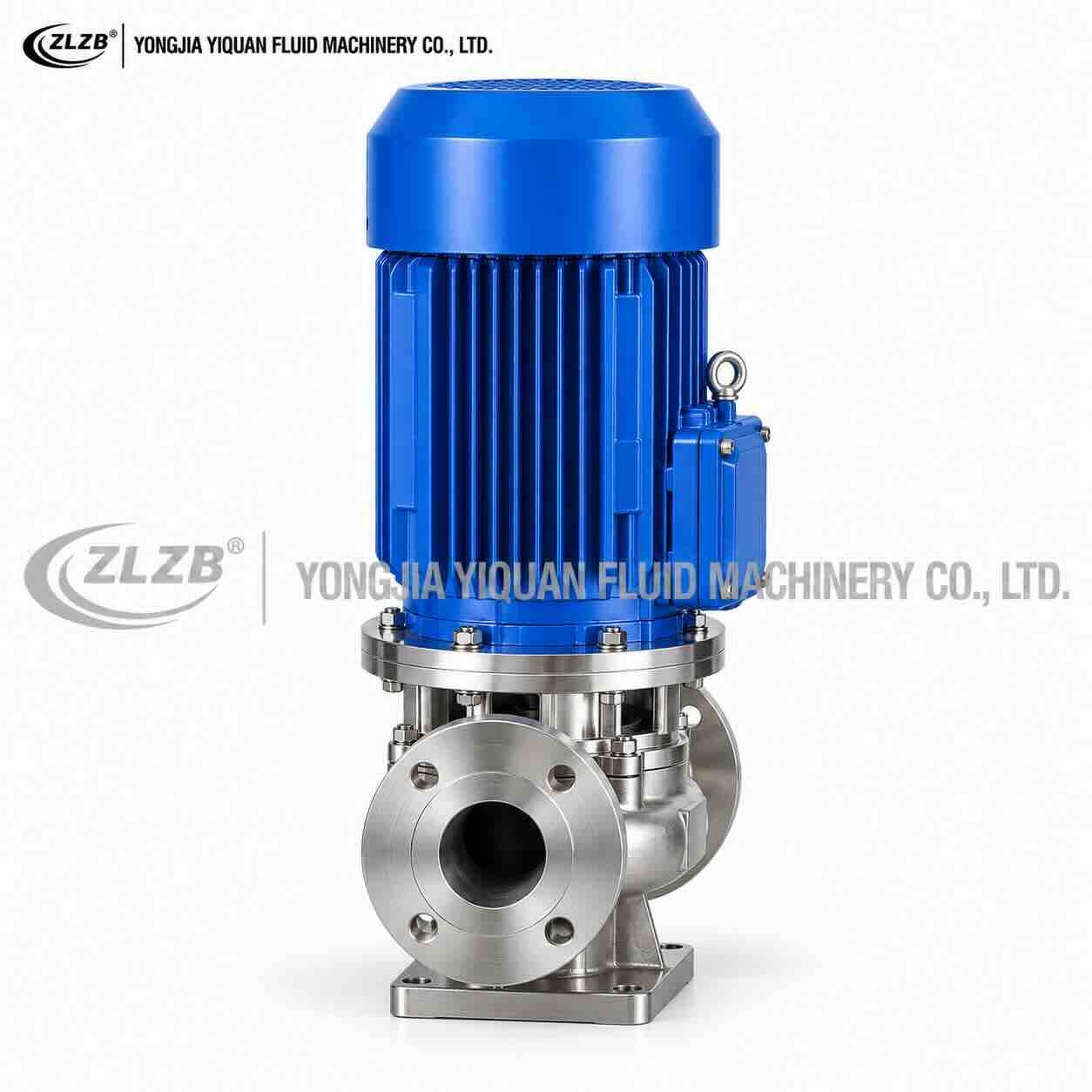

IHG Stainless Steel Vertical Inline Pump
Stainless Steel Inline Chemical Pump for Process Transfer & Circulation
ZLZB® IHG stainless steel vertical inline pumps transfer and circulate compatible corrosive liquids in chemical plants and industrial process systems. Designed for particle-free liquids with water-like viscosity, this single-stage chemical centrifugal pump combines a stainless steel casing and impeller with a mechanical shaft seal. Equal-size inline flanges and a motor mounted above the pump keep the installation compact. Specify the liquid composition, concentration and temperature so the stainless steel grade and seal materials can be matched to your duty. Contact us for IHG pump selection, specifications and a project quotation.
Flow Range:
8.2-1500 m³/h
Head Range:
7-158 m
Power Range:
0.18–220 kW
1
Summary
IHG stainless steel vertical inline pumps are single-stage, single-suction centrifugal pumps for chemical liquid transfer, process circulation and compatible industrial pipeline duties. Their stainless steel wetted parts serve corrosive, water-like liquids without solid particles, with material selection based on the actual chemical rather than the industry name alone. A directly driven impeller and equal-diameter inline connections create a compact unit for chemical processing, petrochemical utilities, metallurgy, power generation and papermaking systems. ZLZB® supplies IHG chemical pumps for plant operators, engineering contractors and equipment builders. Send the required flow and head together with liquid composition, concentration, temperature and inlet conditions for material selection, installation details and an IHG stainless steel pump quotation.
- Single-stage stainless steel chemical centrifugal pump
- Compact vertical layout with equal-size inline flanges
- Direct motor drive without a separate shaft coupling
- Wetted materials selected for the chemical solution
- Mechanical seal configuration matched to process duty
- IHG model selection, specifications and quotation support
2
Advantages
-
Stainless Steel for Chemical Transfer
IHG pumps use a stainless steel casing and impeller for compatible corrosive process liquids. Select 304, 316 or 316L wetted parts according to the solution, concentration and temperature when specifying an industrial chemical transfer pump. -
Compact Vertical Inline Installation
Matching inlet and outlet diameters on one centerline simplify straight pipeline connections. The motor sits above the hydraulic end, helping contractors fit a stainless steel inline pump into process areas with limited floor space. -
Direct-Drive Single-Stage Construction
The impeller mounts on the extended motor shaft, eliminating a separate shaft coupling. This compact drive arrangement reduces coupling alignment work and provides a straightforward layout for chemical transfer and circulation equipment.
-
Mechanical Seals Matched to the Liquid
Seal faces and elastomers can be specified around the process medium and operating temperature. Include chemical composition and any tendency to crystallize in your enquiry so the IHG seal arrangement can be reviewed with the wetted materials. -
Maintenance with Pipework Connected
The motor and rotating assembly can be withdrawn while the pump casing remains connected to the inlet and outlet pipes. This reduces pipe dismantling during seal and impeller servicing; allow suitable clearance above the unit. -
IHG Pump Selection & Supply Support
ZLZB® supplies IHG stainless steel pumps for industrial buyers, contractors and equipment builders. Share your duty point, liquid details, flange requirements and motor supply for model selection, configuration details and an itemized project quotation.
3
IHG Stainless Steel Vertical Inline Pump Applications

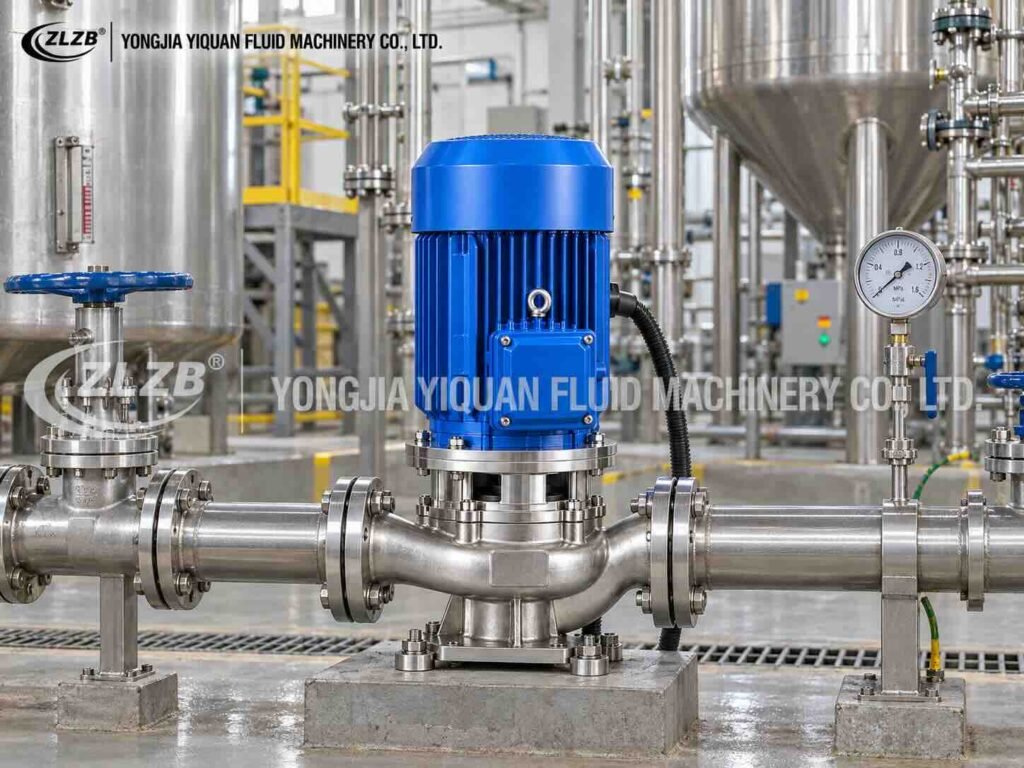

Chemical Processing

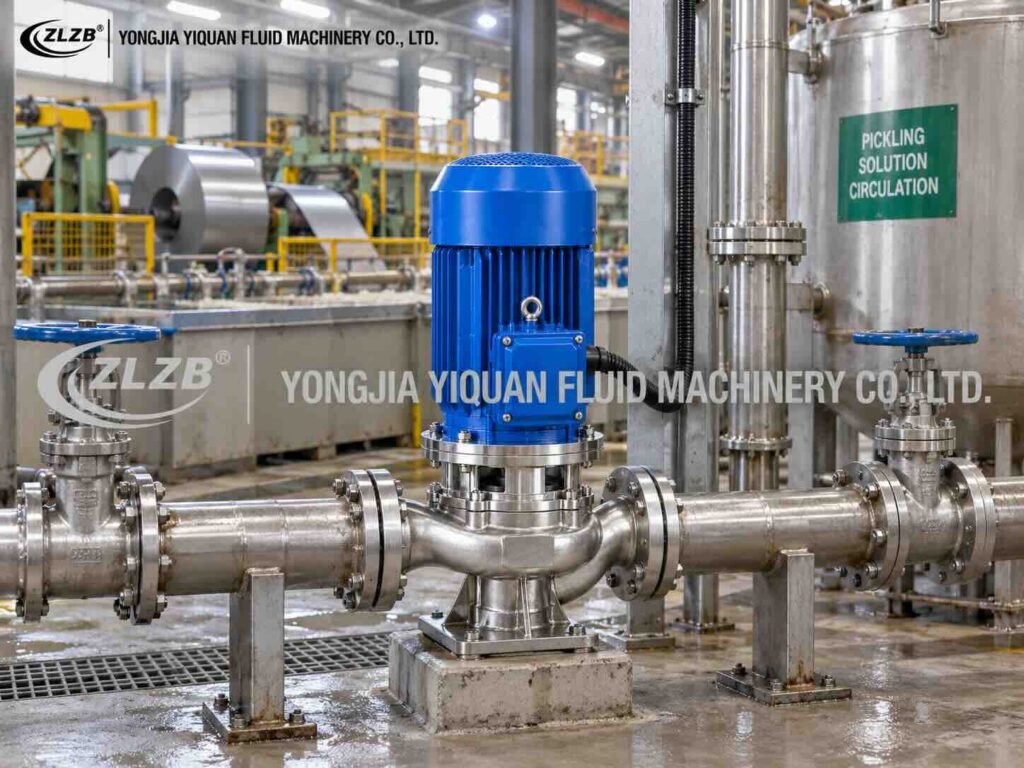

Petrochemical Plants

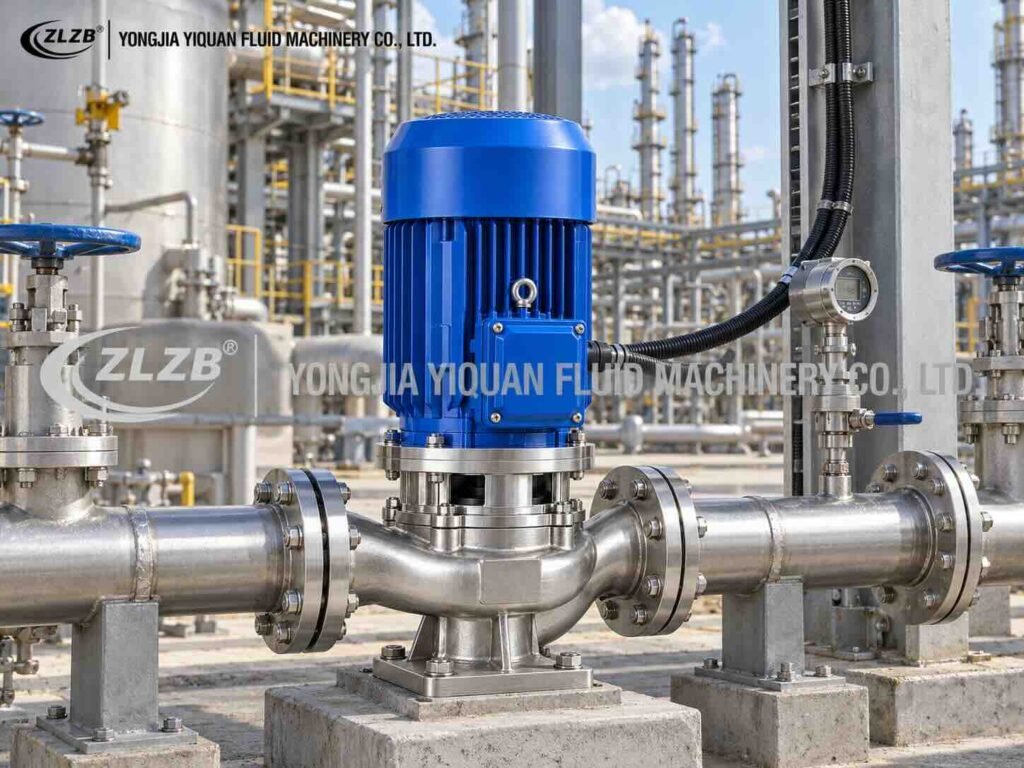

Metallurgical Processes

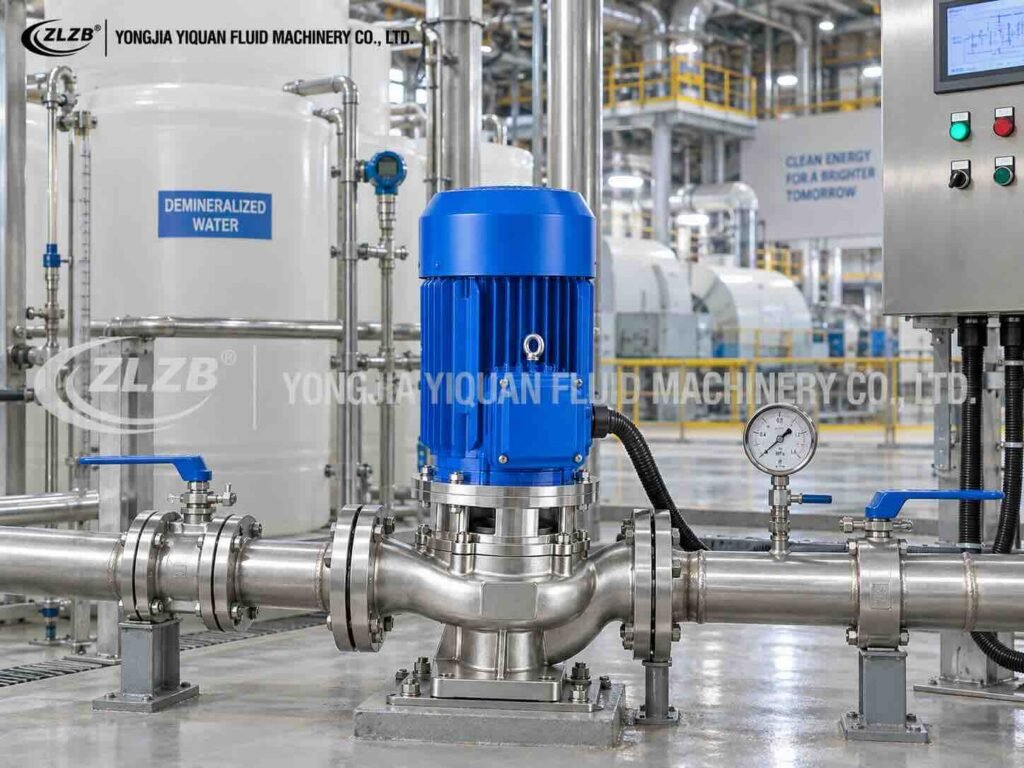

Power Generation

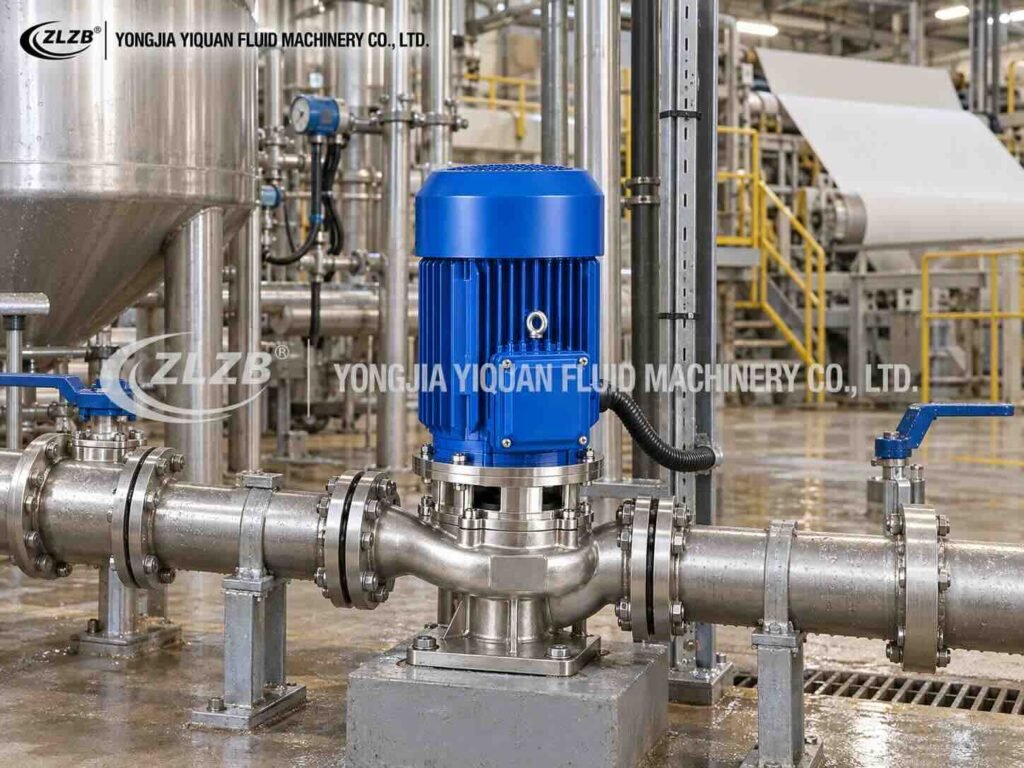

Papermaking
| Application Area | Typical Use Case |
|---|---|
| Chemical Processing | IHG stainless steel chemical transfer pump for moving particle-free process solutions between tanks, reactors and circulation equipment. Select the stainless steel grade and mechanical seal for the chemical composition, concentration and operating temperature. |
| Petrochemical Plants | Vertical inline chemical pump for compatible aqueous process liquids and auxiliary circulation in petrochemical facilities. Provide the liquid data and area classification with your enquiry so the motor and seal configuration can be specified for the installation. |
| Metallurgical Processes | IHG corrosion-resistant process pump for clear treatment solutions and compatible chemical circulation in metallurgical production. The compact inline layout suits connected process equipment; material selection must account for solution chemistry and any solids present. |
| Power Generation | Stainless steel inline circulation pump for compatible treatment chemicals and auxiliary process-water circuits in power plants. Choose the IHG duty point around circuit resistance, inlet conditions and the required transfer or circulation flow. |
| Papermaking | IHG chemical centrifugal pump for clear, fiber-free process solutions and compatible chemical transfer in paper mills. Match the wetted parts to the liquid and temperature when specifying a pump for the mill's auxiliary chemical systems. |
| Textiles & Synthetic Fibers | Stainless steel vertical process pump for compatible, low-viscosity chemical solutions in textile and synthetic-fiber production. Send solution details and the circulation duty for IHG model selection and material recommendations. |
| Food & Pharmaceutical Utilities | IHG inline pump for compatible utility-water and auxiliary chemical circuits in food and pharmaceutical facilities. Include cleaning conditions and material requirements in the enquiry; direct product-contact duties require a separately verified hygienic configuration. |
4
Product Specifications
| Item | Specification |
|---|---|
| Pump Type | Single-Stage Single-Suction Vertical Inline Stainless Steel Chemical Centrifugal Pump |
| Flow Range | 8.2–1500 m³/h |
| Head Range | 7–158 m |
| Power Range | 0.18–220 kW |
| Liquid Temperature | -20°C to +120°C |
| Wetted Material | Stainless Steel 304 / 316 / 316L (depending on liquid and model) |
| Connection | Flanged Connection |
| Frequency | 50 Hz standard / 60 Hz available on request |
| Motor Protection | IP55 (depending on motor configuration) |
| Standard Voltage | 3 × 380 V / 50 Hz (other voltages available on request) |
5

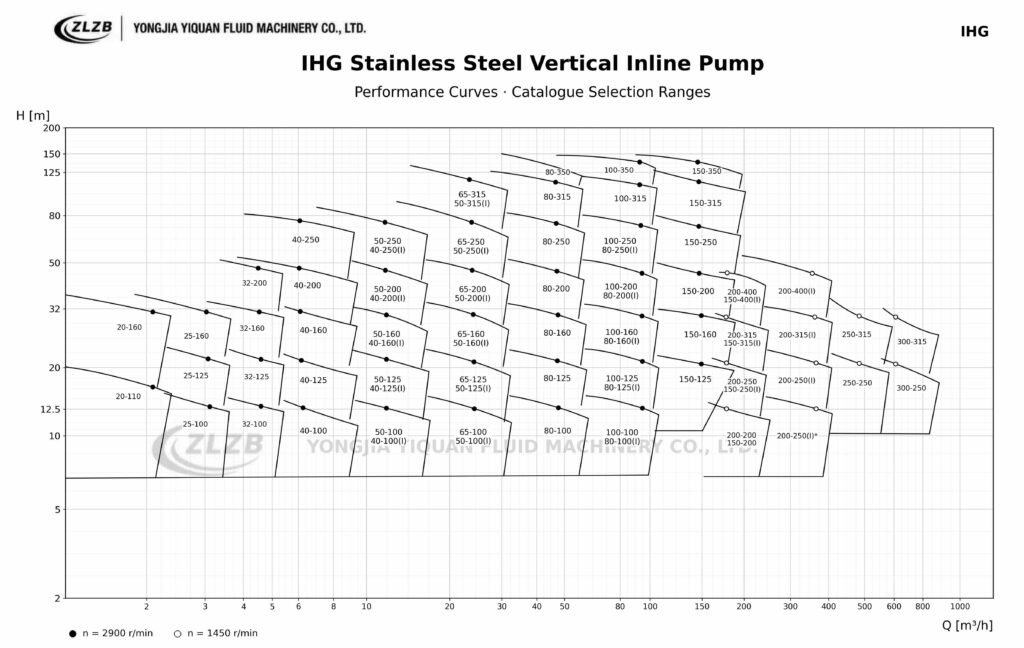

Performance Curves
6
Specification Data
| Model | Flow (m³/h) | Flow (L/s) | Head (m) | Speed (r/min) | Power (kW) |
|---|
7
FAQ
-
How do I select an IHG stainless steel inline pump?
Start with the required flow and head, then identify the liquid composition, concentration, temperature and inlet pressure. ZLZB® can review the hydraulic duty, stainless steel grade and mechanical seal together to recommend an IHG chemical pump configuration. -
What applications are IHG chemical pumps used for?
IHG pumps serve compatible chemical transfer and circulation duties in chemical processing, petrochemical plants, metallurgy, power generation and papermaking. Select them for particle-free, water-like process liquids after confirming material compatibility. -
What is the difference between IHG and IHW pumps?
IHG uses a vertical inline layout with equal-size suction and discharge flanges on one centerline. IHW uses a horizontal arrangement. Compare pipeline geometry, floor space and maintenance access as well as the duty curve and wetted materials when choosing the pump.
-
Should I choose 304, 316 or 316L stainless steel?
The right grade depends on the chemical, concentration, temperature and contaminants. A 316 or 316L pump is not suitable for every corrosive liquid. Provide the full liquid specification so casing, impeller, seal faces and elastomers can be checked as one configuration. -
Can an IHG pump handle slurry or flammable chemicals?
Standard IHG selection is for particle-free liquids with water-like viscosity. Slurries and fiber-bearing liquids need a different hydraulic assessment. For flammable chemicals or hazardous areas, specify the required motor protection and complete pump configuration; standard IHG is not automatically an explosion-proof pump. -
What affects IHG pump price and what is needed for a quotation?
IHG pump price depends on the selected model, stainless steel grade, seal, motor and order quantity. Send flow, head, liquid details, inlet pressure, flange requirements, voltage and frequency to ZLZB® for configuration confirmation and a project-specific quotation.
