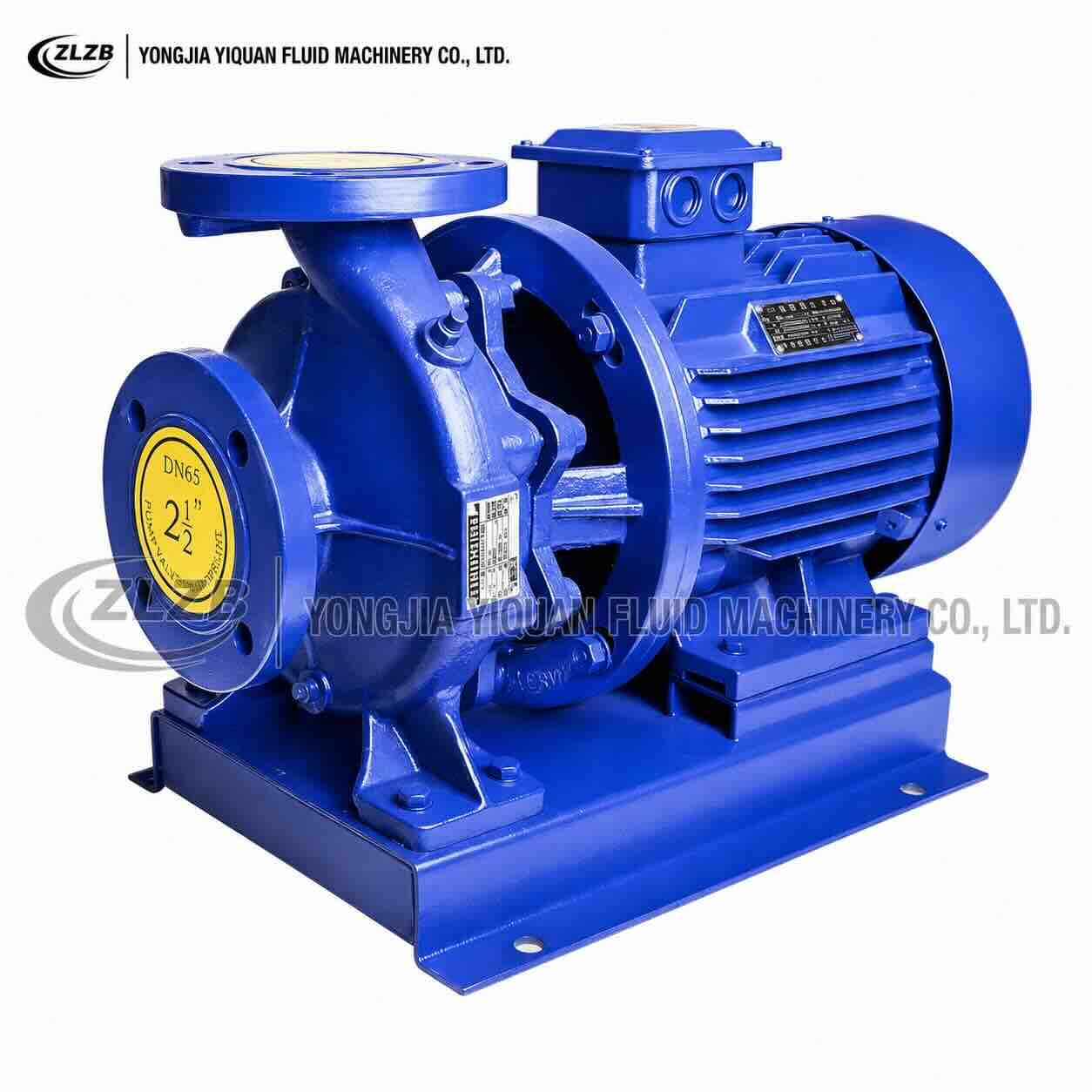

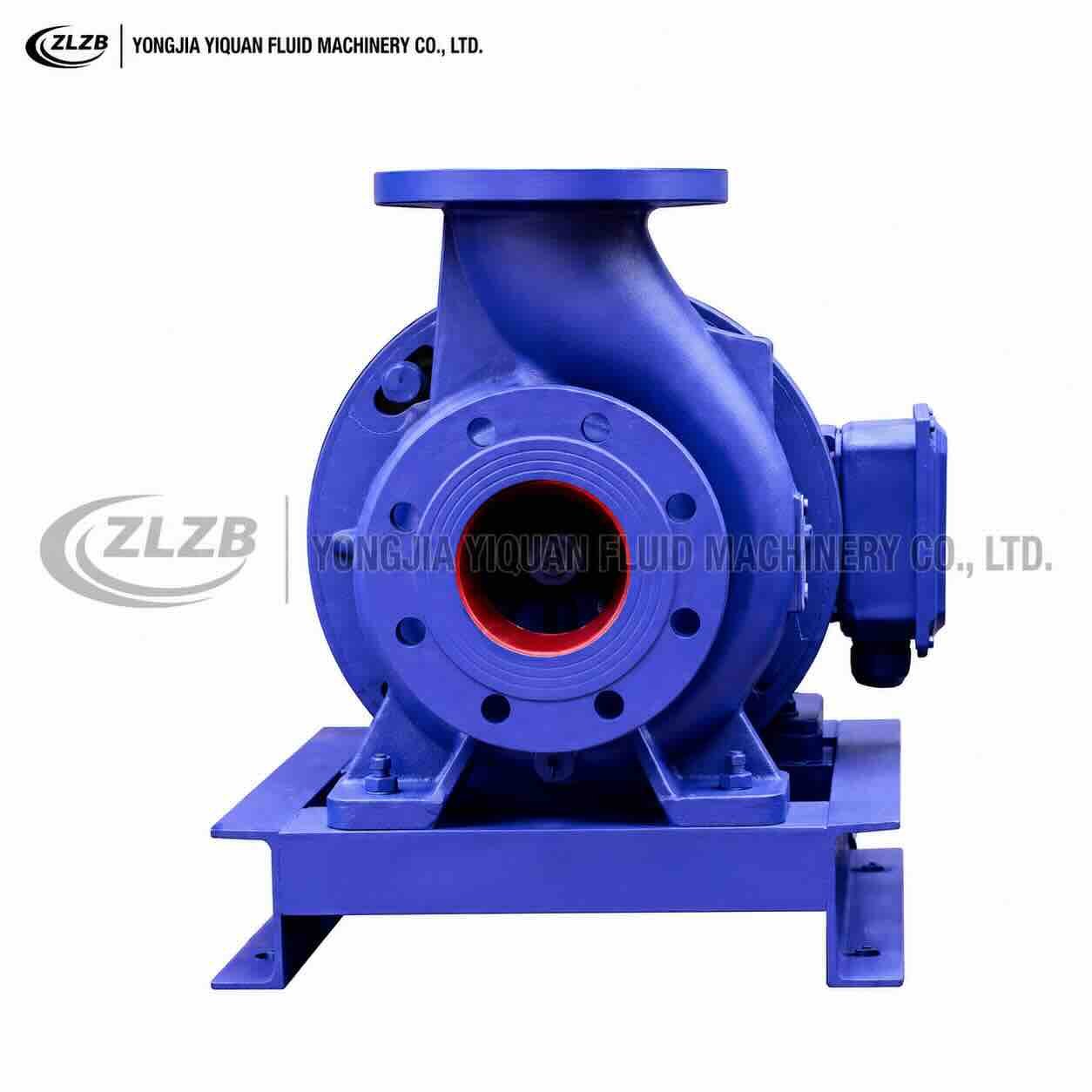

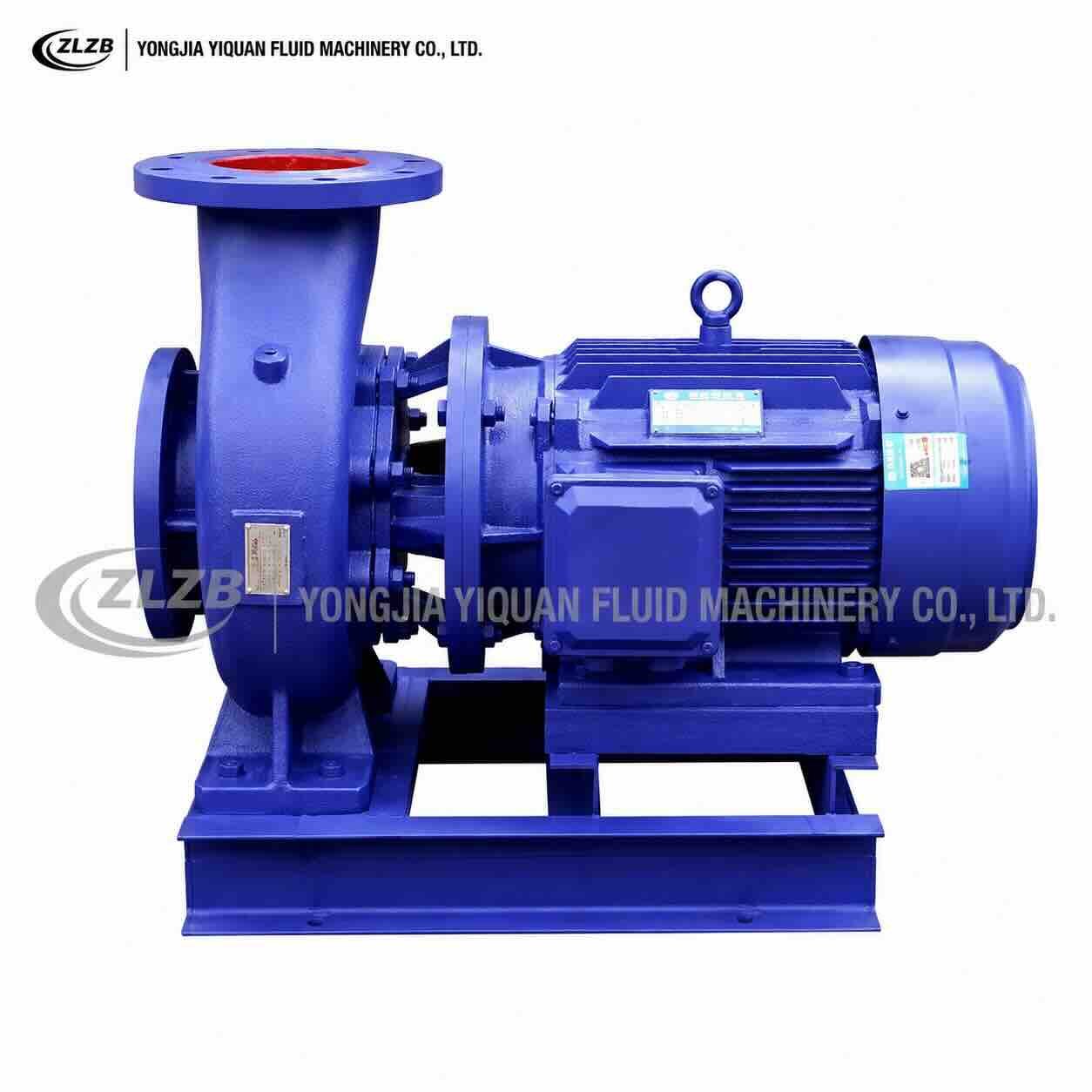

ISW Horizontal Centrifugal Pump
Single-Stage Horizontal Centrifugal Pump for Water Supply & HVAC Circulation
ISW horizontal centrifugal pump is a single-stage single-suction pump designed for industrial and municipal water supply, high-rise building pressure boosting, HVAC circulation and general clean-water transfer. The direct-coupled horizontal structure integrates the pump and motor in a compact arrangement, helping simplify installation while providing reliable operation in pipeline water systems. Standard ISW models are mainly used for clean water and liquids with similar physical and chemical properties. ZLZB® supplies ISW pumps with model selection based on required flow, head, liquid temperature, pipeline size and operating conditions.
Flow Range:
2.5-1200 m³/h
Head Range:
10-180 m
Power Range:
0.18–250 kW
1
Summary
ISW horizontal centrifugal pumps are designed for clean-water transfer in building, municipal and industrial pipeline systems. The single-stage direct-coupled structure combines the centrifugal pump and motor in a compact horizontal arrangement, reducing alignment work and simplifying installation and maintenance. ISW pumps are commonly selected for water supply, secondary pressure boosting, HVAC circulation, fire-water boosting and long-distance transfer systems. ZLZB® provides ISW pump selection according to required flow, head, liquid temperature, connection size and application conditions.
- Single-stage single-suction centrifugal pump design
- Compact direct-coupled pump and motor structure
- Suitable for clean-water pipeline transfer
- Used for building and municipal water supply
- Applicable to HVAC circulation and pressure boosting
- Selection based on flow, head and pipeline requirements
2
Advantages
-
Compact Direct-Coupled Design
The ISW pump uses a compact direct-coupled structure that integrates the pump and motor, simplifying installation and reducing alignment requirements. -
Single-Stage Hydraulic Structure
The single-stage single-suction centrifugal design provides reliable clean-water transfer for building, municipal and industrial pipeline systems. -
Convenient Pipeline Installation
The horizontal configuration allows straightforward connection to water supply, circulation and transfer pipelines in commercial and industrial systems.
-
Suitable for Water Supply & Boosting
ISW pumps are commonly used for municipal water supply, high-rise building boosting, fire-water pressure boosting and general water distribution. -
HVAC & Circulation Applications
The pump can be applied in HVAC cooling-water circulation, hot and cold water systems and other compatible building-service applications. -
Flexible Pump Selection
ZLZB® supplies ISW horizontal centrifugal pumps selected according to required flow, head, pipeline size, liquid temperature and operating conditions.
3
ISW Horizontal Centrifugal Pump Applications (Real Installation Photos)

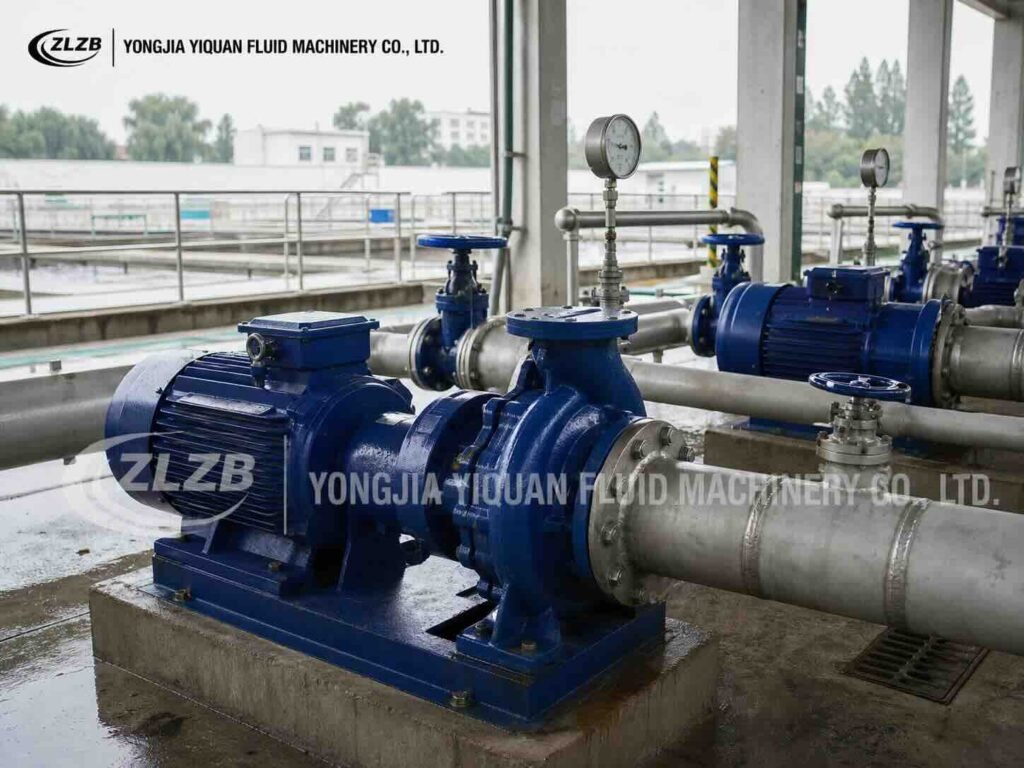

Industrial & Municipal Water Supply

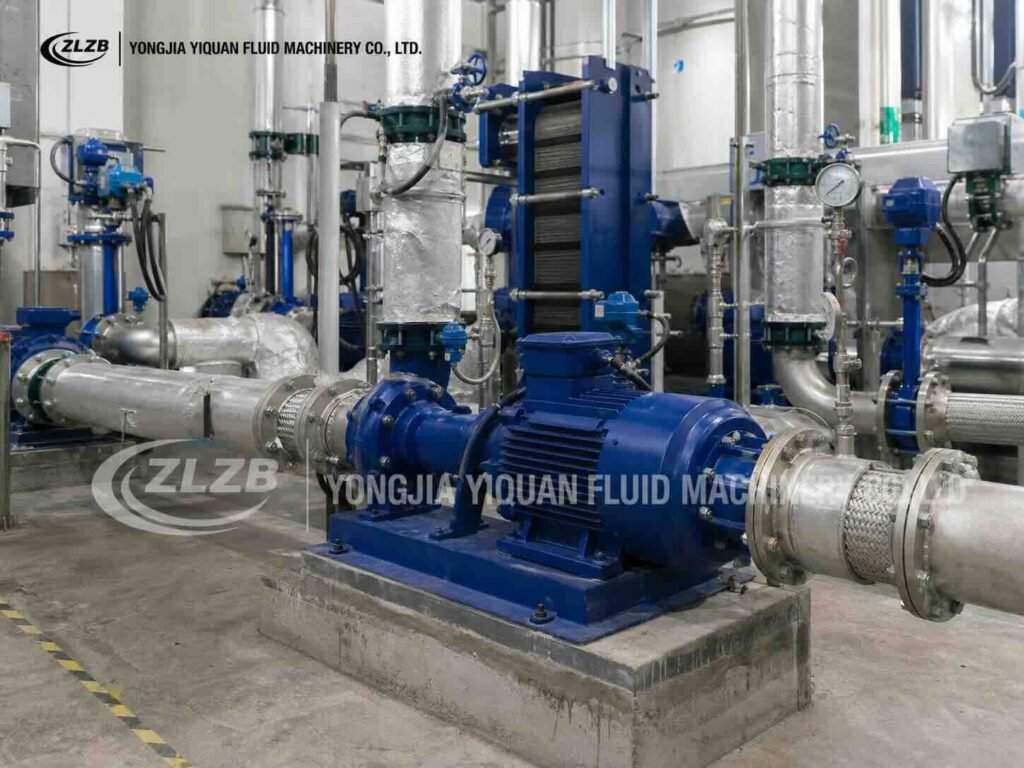

High-Rise Building Pressure Boosting

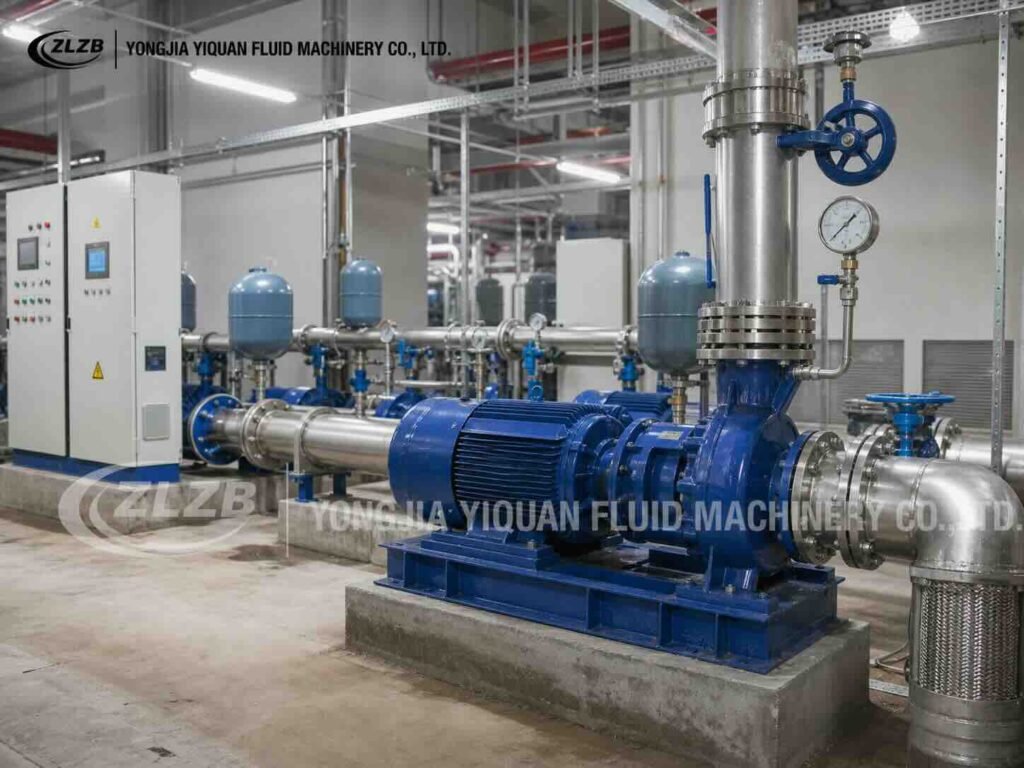

HVAC Cooling Water Circulation

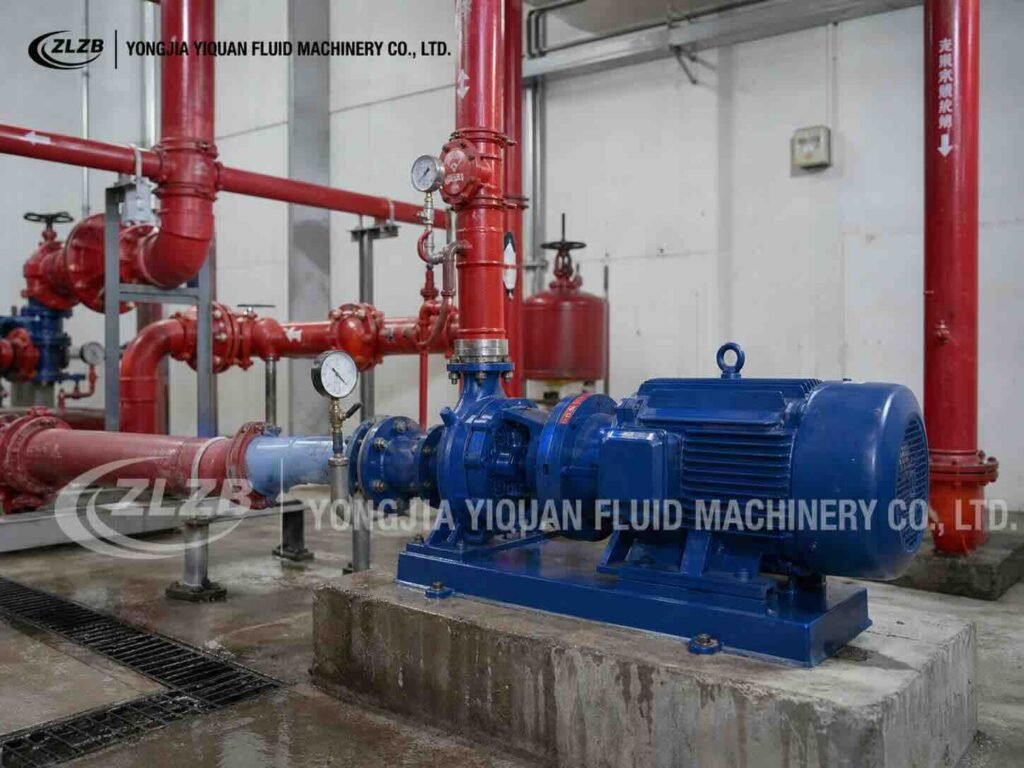

Fire-Water
Pressure Boosting

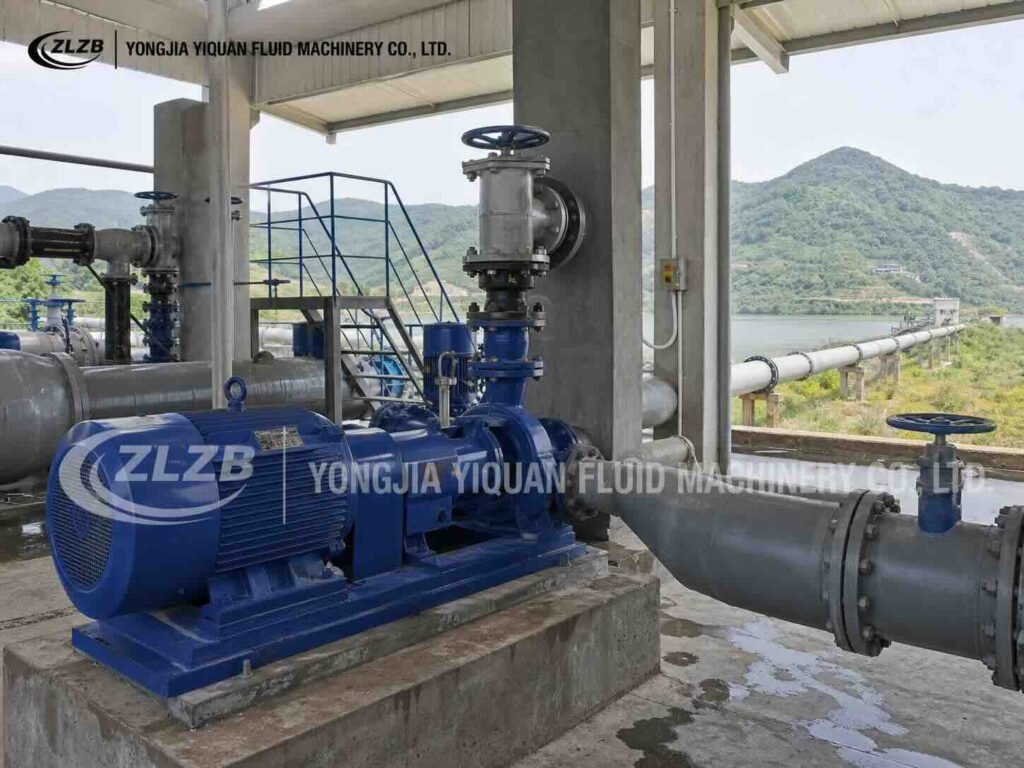

Long-Distance Water Transfer
| Application Area | Typical Use Case |
|---|---|
| Industrial & Municipal Water Supply | ISW horizontal centrifugal pump for factory water distribution, municipal water networks and general clean-water transfer in industrial and urban pipeline systems. |
| High-Rise Building Pressure Boosting | Suitable for residential towers, hotels and commercial buildings where additional water pressure is required for upper-floor supply and building distribution systems. |
| HVAC & Cooling Water Circulation | Horizontal centrifugal pump for HVAC cooling-water circulation, air-conditioning equipment and compatible hot and cold water systems in commercial and industrial facilities. |
| Fire-Water Pressure Boosting | ISW pumps can be applied in compatible fire-water boosting and pressure-maintenance systems when the selected model and operating conditions meet the project requirements. |
| Long-Distance Water Transfer | Used for clean-water pipeline transfer and distribution systems where stable flow and sufficient delivery pressure are required over longer piping distances. |
| Garden & Sprinkler Irrigation | Horizontal water pump for landscape irrigation, sprinkler systems, garden water supply and other clean-water applications requiring reliable continuous delivery. |
| Equipment & Process Water Supply | ISW horizontal centrifugal pump for production equipment, packaged water systems and general industrial process water supply where compact pipeline installation is preferred. |
4
Product Specifications
| Item | Specification |
|---|---|
| Pump Type | Single-Stage Single-Suction Horizontal Centrifugal Pump |
| Flow Range | 2.5–1200 m³/h |
| Head Range | 10–180 m |
| Power Range | 0.18–250 kW |
| Liquid Temperature | ≤ 80°C |
| Wetted Material | Pump Casing / Impeller: HT200 Cast Iron; Shaft: 45# Steel |
| Connection | Flanged Connection |
| Frequency | 50 / 60 Hz |
| Motor Protection | IP55 |
| Standard Voltage | 3 × 380 V / 50 Hz (other voltages available on request) |
5

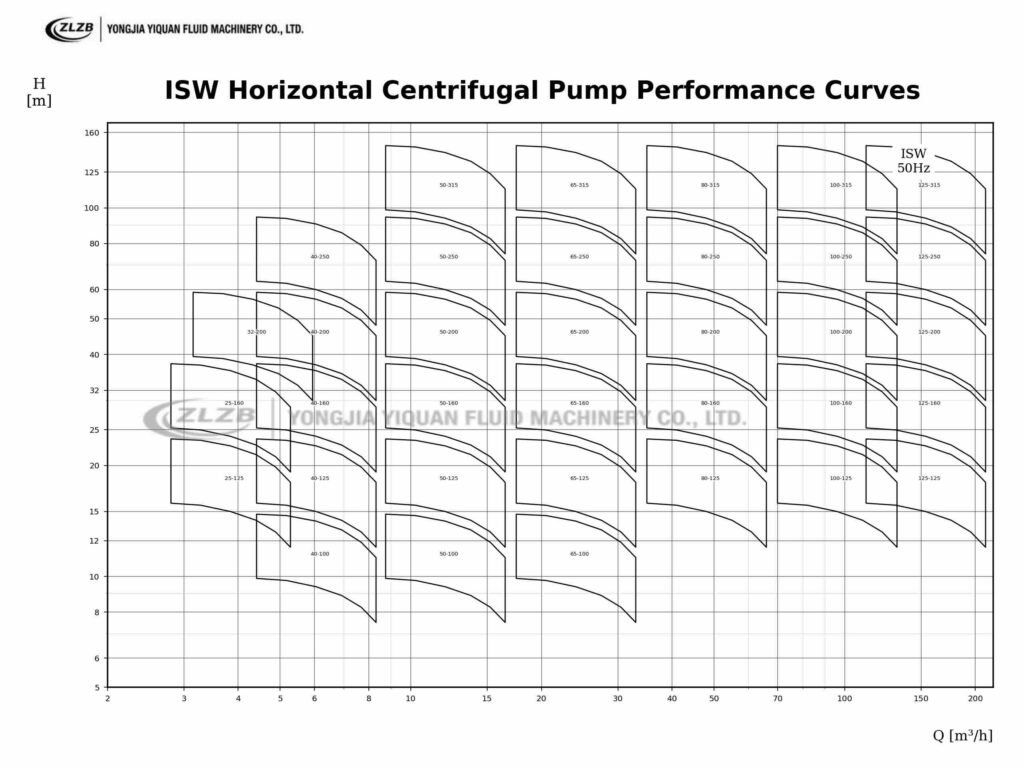

Performance Curves
6
Specification Data
| Model | Flow (m³/h) | Flow (L/s) | Head (m) | Speed (r/min) | Power (kW) | Efficiency (%) | NPSHr (m) | Weight (kg) |
|---|
7
FAQ
-
How do I select the right ISW horizontal centrifugal pump?
Select the pump according to required flow, head, liquid temperature, pipeline size and operating conditions. ZLZB® can recommend a suitable ISW model based on your system requirements. -
What are ISW horizontal centrifugal pumps mainly used for?
ISW pumps are commonly used for industrial and municipal water supply, building pressure boosting, HVAC circulation, cooling-water systems and general clean-water transfer. -
What is the difference between ISW and ISWR centrifugal pumps?
Standard ISW pumps are mainly designed for clean-water service, while ISWR models are intended for compatible hot-water applications. The appropriate version should be selected according to liquid temperature and operating conditions.
-
Can ISW pumps be used for high-rise building pressure boosting?
Yes. ISW pumps can be applied in building water supply and pressure-boosting systems when the selected flow, head and system conditions match the required operating point. -
What liquids are suitable for an ISW horizontal centrifugal pump?
Standard ISW pumps are suitable for clean water and liquids with similar physical and chemical properties without significant solid particles. For corrosive or special liquids, a suitable material and pump configuration should be selected. -
What information is required for an ISW pump quotation?
Please provide the required flow, head, liquid temperature, application, pipeline size, voltage and frequency. ZLZB® can then recommend a suitable ISW pump model and prepare a quotation.
