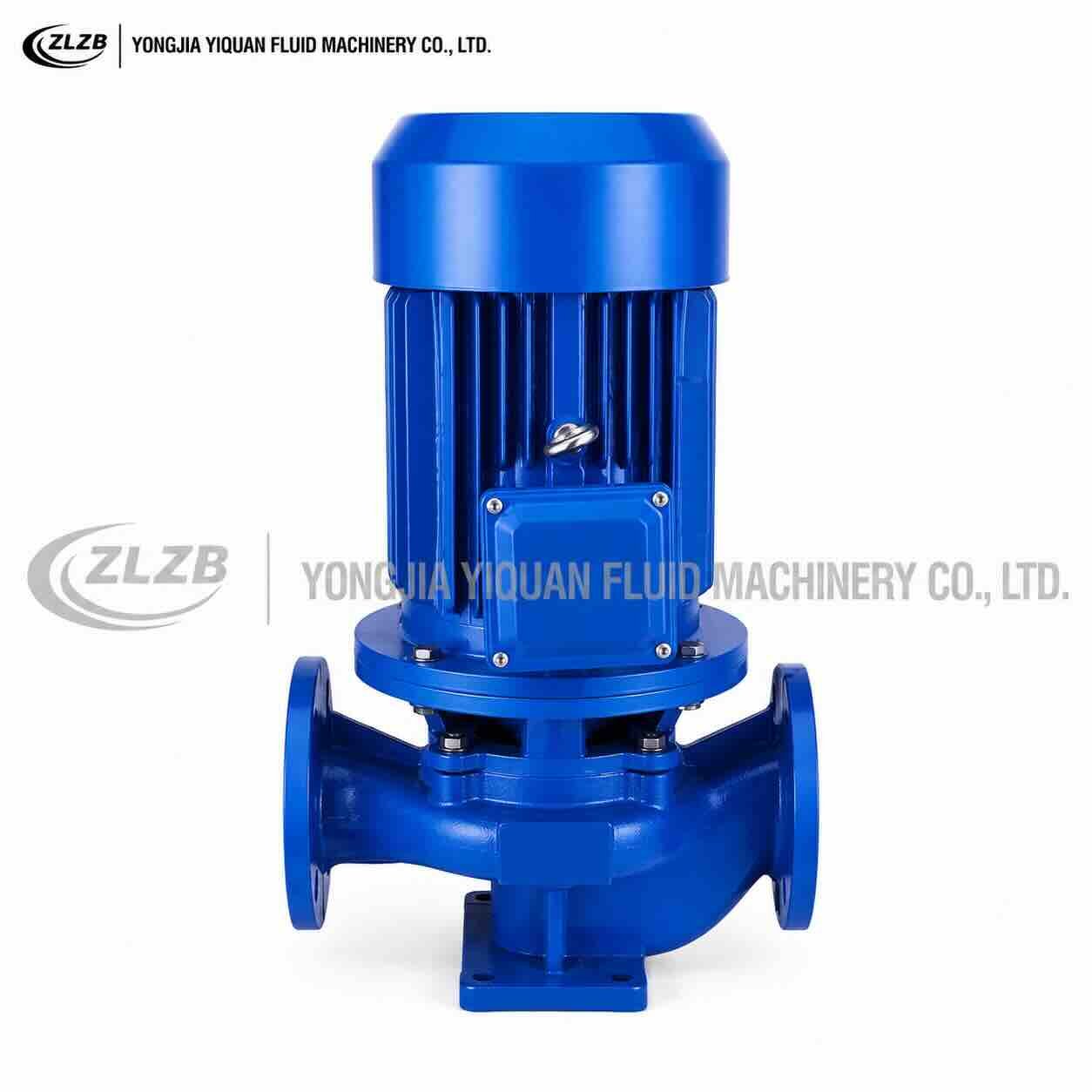

ISG Vertical Inline Centrifugal Pump
Single-Stage Vertical Inline Pump for Water Supply, HVAC Circulation & Pressure Boosting
ISG vertical inline centrifugal pump is a single-stage, single-suction centrifugal pump designed for clean water and liquids with physical and chemical properties similar to water. Its suction and discharge ports have the same nominal diameter and are arranged on the same centerline, allowing the pump to be installed directly into the pipeline while saving installation space. The ISG series is widely used for industrial and municipal water supply and drainage, building pressure boosting, HVAC cooling and heating water circulation, irrigation, long-distance water transfer and general equipment circulation. ZLZB® provides ISG pump selection based on required flow, head, liquid temperature, pipeline diameter, power supply and actual operating conditions.
Flow Range:
8.2-1500 m³/h
Head Range:
7-158 m
Power Range:
0.18–220 kW
Summary
ISG vertical inline centrifugal pump is a single-stage, single-suction pipeline pump designed for clean water and liquids with physical and chemical properties similar to water. The vertical inline configuration places the suction and discharge connections at the same nominal diameter and on the same centerline, allowing the pump to be integrated directly into the piping system while reducing installation space. The ISG series is widely used for industrial and municipal water supply and drainage, building pressure boosting, HVAC cooling and heating water circulation, garden irrigation, fire water boosting, long-distance water transfer and equipment circulation. ZLZB® provides ISG pump selection according to required flow, head, pipeline size, liquid temperature, power supply and actual system operating conditions.
- Single-stage, single-suction vertical inline design
- Same-size inlet and outlet for direct pipeline installation
- Suitable for clean water and liquids with properties similar to water
- Used for water supply, circulation and pressure boosting systems
- Suitable for HVAC, irrigation and building water services
- Pump selection based on required flow, head and system conditions
Advantages
-
Vertical Inline Pipeline Design
The suction and discharge ports are arranged on the same centerline, allowing direct connection to the pipeline while helping reduce installation space. -
Compact Installation Footprint
The vertical inline structure requires less floor space, making the ISG pump suitable for equipment rooms, building services and compact piping systems. -
Single-Stage Centrifugal Design
The single-stage, single-suction hydraulic structure provides continuous water transfer for circulation, pressure boosting, water supply and general pipeline applications.
-
Direct Pipeline Installation
The inline configuration simplifies pipeline connection and helps reduce installation complexity in water supply and circulation systems. -
Wide Water-Service Applications
ISG pumps are suitable for building water supply, HVAC circulation, pressure boosting, irrigation, fire water systems and industrial water transfer. -
Application-Based Pump Selection
ZLZB® supplies ISG vertical inline centrifugal pumps selected according to required flow, head, pipeline diameter, liquid temperature, power supply and operating conditions.
ISG Vertical Inline Centrifugal Pump Applications (Real Installation Photos)

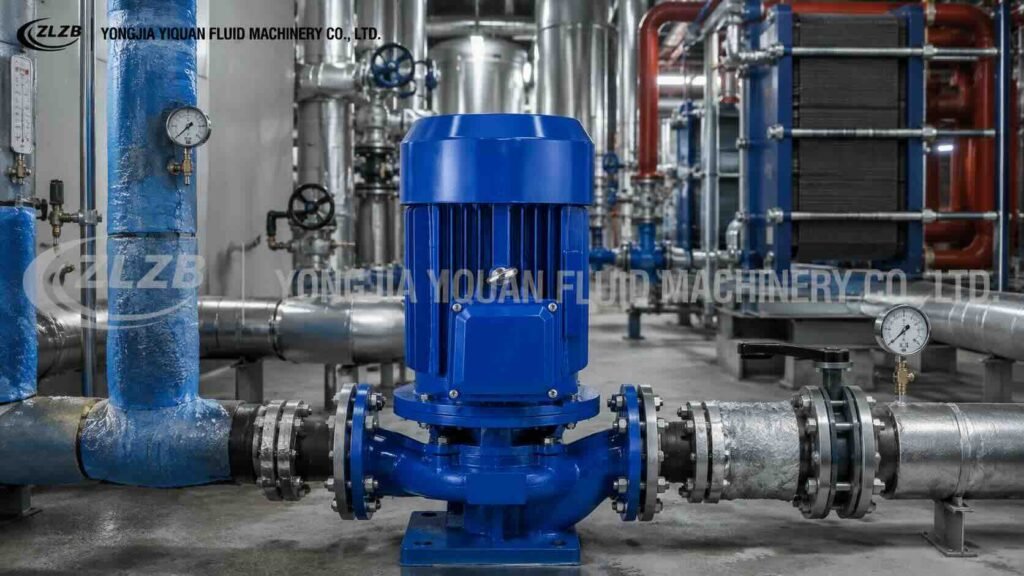

Building Water Supply & Pressure Boosting

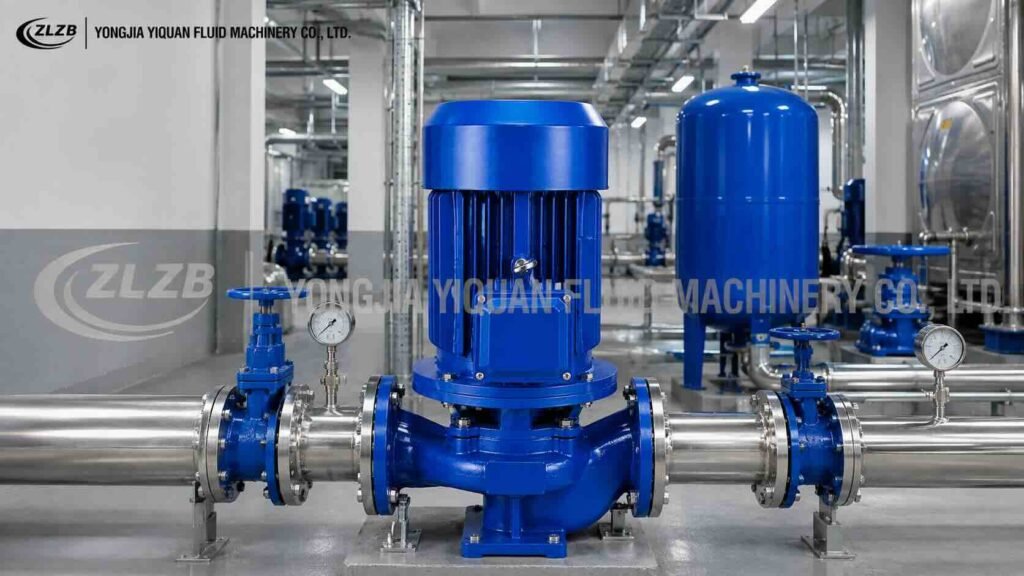

HVAC Cooling & Heating Circulation

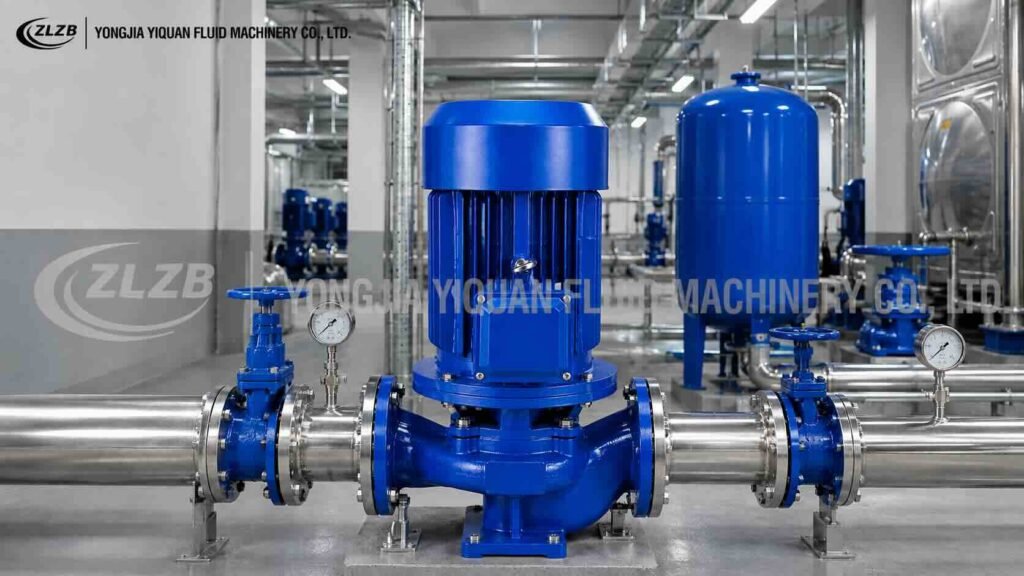

Industrial & Municipal Water Supply

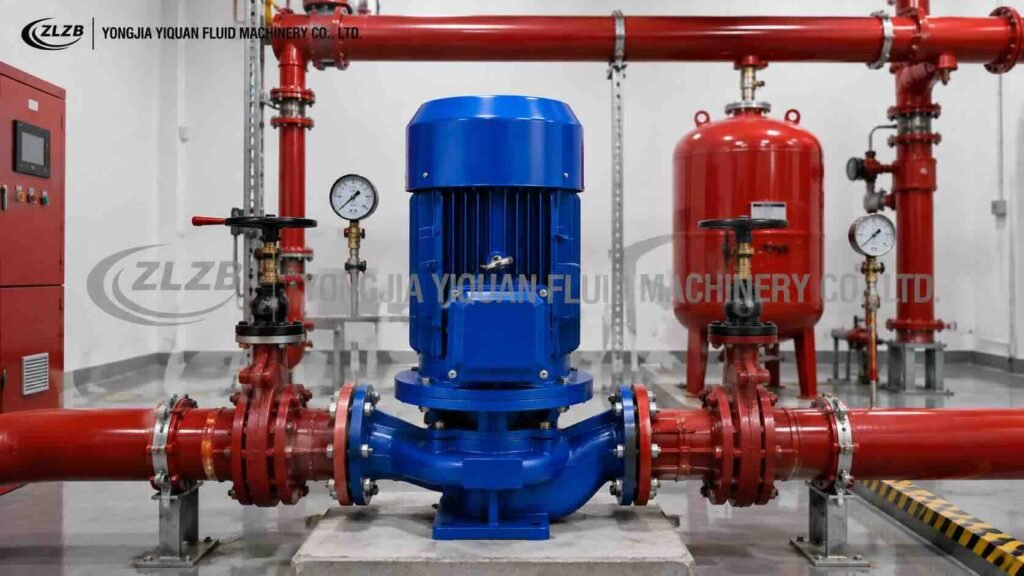

Fire Water
Pressure Boosting

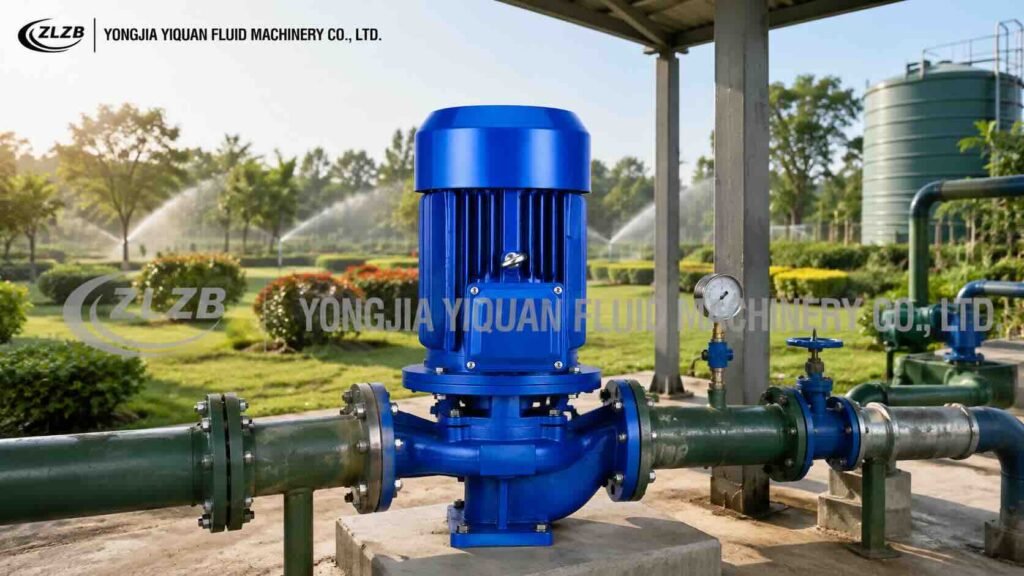

Garden Irrigation & Water Transfer
| Application Area | Typical Use Case |
|---|---|
| Building Water Supply & Pressure Boosting | ISG vertical inline centrifugal pump for building water supply, high-rise pressure boosting and commercial water systems requiring compact direct pipeline installation and reliable clean-water delivery. |
| HVAC Cooling & Heating Circulation | Used for chilled-water circulation, heating-water circulation, cooling systems and HVAC pipeline applications in buildings, equipment rooms and industrial utility systems. |
| Industrial & Municipal Water Supply | Suitable for industrial water supply, municipal water distribution, clean-water transfer and drainage support where a single-stage vertical inline pump is required. |
| Fire-Fighting Water Supply Boosting | Applied in fire-fighting water supply boosting and pipeline pressurization systems to support water delivery at the required flow and head. |
| Garden & Sprinkler Irrigation | ISG inline pump for garden irrigation, sprinkler irrigation, landscape water supply and other clean-water distribution applications. |
| Long-Distance Water Transfer | Suitable for remote water supply and long-distance clean-water transfer through pipeline systems where continuous flow and pressure support are required. |
| Equipment Water Circulation & System Support | Used for equipment cooling-water circulation, utility-water transfer and supporting circulation or boosting duties in industrial and building service systems. |
Product Specifications
| Item | Specification |
|---|---|
| Pump Type | Single-Stage Single-Suction Vertical Inline Centrifugal Pump |
| Flow Range | 8.2–1500 m³/h |
| Head Range | 7–158 m |
| Power Range | 0.18–220 kW |
| Liquid Temperature | Up to 80°C (standard ISG) |
| Pump Body Material | Cast Iron (standard configuration, model dependent) |

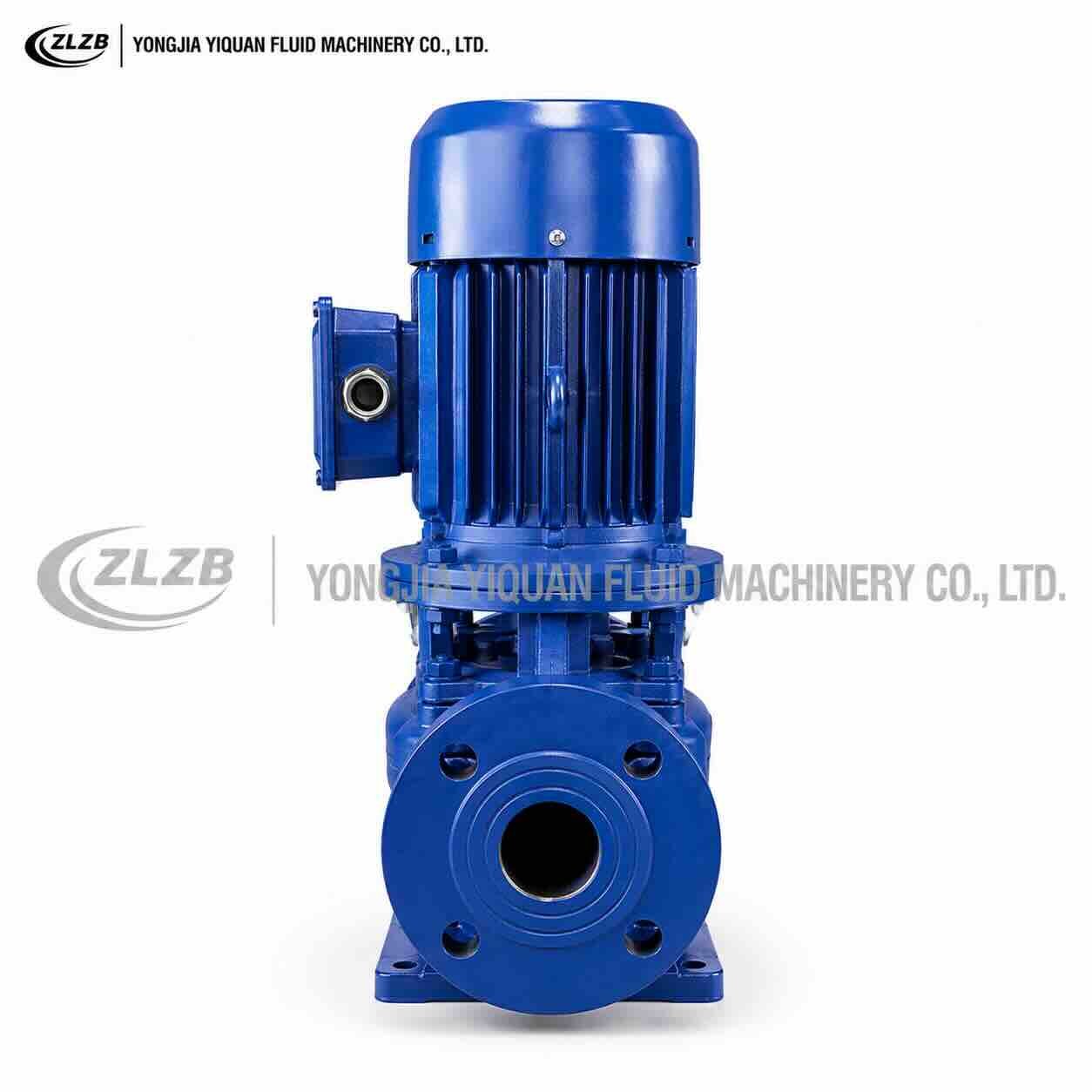

| Connection | Flanged Connection |
| Frequency | 50 Hz standard / 60 Hz optional |
| Motor Protection | IP55 (depending on motor configuration) |
| Standard Voltage | 3 × 380 V / 50 Hz (other voltages available on request) |

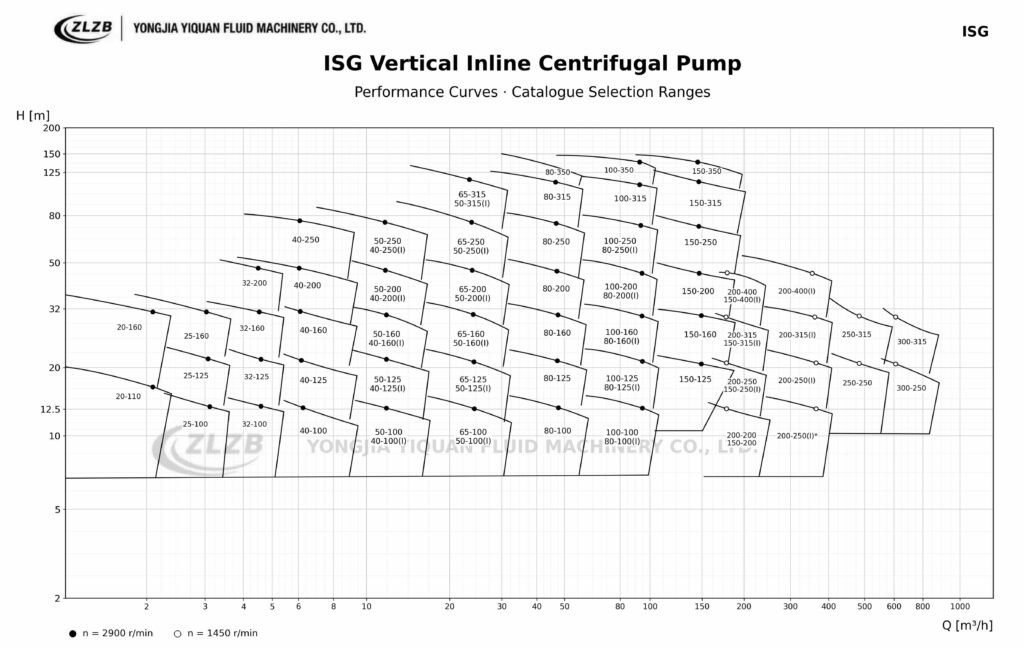

Performance Curves
Specification Data
| Model | Flow (m³/h) | Flow (L/s) | Head (m) | Speed (r/min) | Power (kW) |
|---|
FAQ
-
How do I select the right ISG vertical inline centrifugal pump?
Select the pump according to required flow, head, pipeline diameter, liquid temperature, power supply and actual operating conditions. ZLZB® can recommend a suitable ISG model based on your system requirements. -
What liquids can an ISG vertical inline centrifugal pump handle?
Standard ISG pumps are mainly designed for clean water and liquids with physical and chemical properties similar to water. For corrosive, oily or special-temperature liquids, a different pump type should be selected according to the actual medium. -
What is the difference between ISG and IHG vertical inline pumps?
ISG pumps are mainly used for clean-water supply, circulation and pressure boosting, while IHG pumps are designed for compatible corrosive liquids and applications requiring corrosion-resistant materials.
-
What is the maximum liquid temperature for a standard ISG pump?
Standard ISG vertical inline centrifugal pumps are generally used for liquids below 80°C. For higher-temperature water circulation, a suitable hot-water pump type should be selected according to the operating temperature. -
Where are ISG vertical inline centrifugal pumps commonly used?
ISG pumps are widely used for industrial and municipal water supply, building pressure boosting, HVAC circulation, garden irrigation, fire-water boosting and long-distance water transfer. -
What information is required for an ISG pump quotation?
Please provide the required flow, head, pipeline diameter, liquid type and temperature, voltage, frequency and application. ZLZB® can then recommend the appropriate ISG vertical inline centrifugal pump and prepare a quotation.
